Model: Nest-HV-ST-8K Download Datasheet

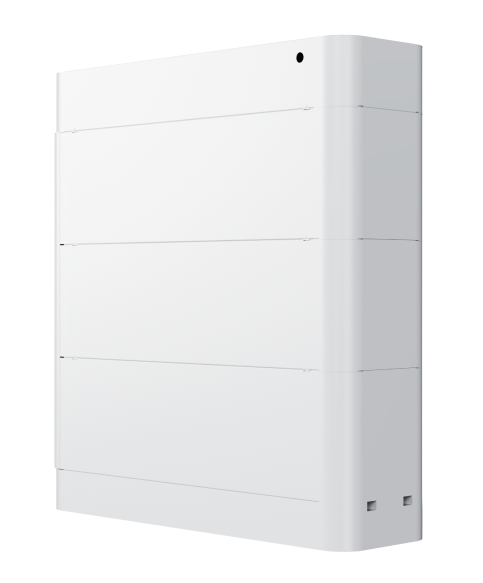

Nest 8kWh high-voltage stackable residential battery — gallery view Nest-HV-ST-8K high-voltage residential ESS
Model Nest-HV-ST-8K
Battery TypeLFP
Cell Capacity314 Ah
Capacity8 kWh
Nominal Voltage550 V
Max. Charge Current0.5P
Max. Discharge Current0.5P
Peak Current4 kW
CommunicationRS485 / CAN
Dimensions988 × 300 × 278mm
Weight85 kg
Operating TemperatureCharge: 0 to 55 °C Discharge: –20 to 55 °C
Storage Temperature5 to 35°C
Relative Humidity5–95%
Max. Operating Altitude< 3000 m
Cooling MethodNatural Convection
Protection RatingIP65
Installation MethodStackable
Cycle Life≥6000 cycles @ 80% DOD
ExpansionUp to 6 modules per string
Up to 16 battery modules total
All specifications are for reference only. Dimensions and weight are approximate and subject to change as product design is finalized.

High-Voltage Battery System

Higher System Efficiency
Optimized for DC-Coupled Systems

Scalable Architecture

Up to 6 Modules per String
Up to 16 Modules Total

Independent BMS

Per-Module SOC Management
Supports Mixed Battery Use

High Output Performance

4kW Discharge
Designed for High Energy Demand

High-Density LFP Battery

314Ah Large-Cell Design
6000 Cycles at 80% DOD

Clean Wiring Structure

Single Combiner Connection
Bottom-Side Parallel Wiring
