Model: Vault 100 Download Datasheet

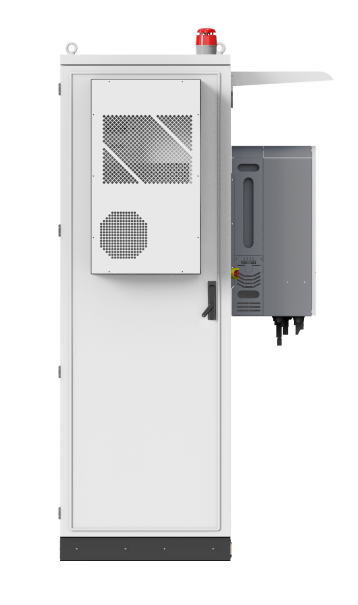

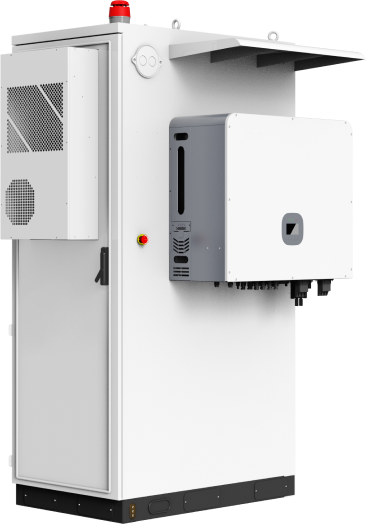

C&I all-in-one commercial battery system — main view Vault-100 all-in-one industrial energy storage system
Model Vault 100
Max. DC Input Voltage1000 V
MPPT Voltage Range180 – 900 V
Number of MPPTs4
Max. Input Current (per MPPT)36 A
Rated AC Power50 kW
Max. Apparent Power55 kVA
Rated Grid Voltage3L / N / PE, 380 / 400 V
Rated Grid Frequency50 / 60 Hz
Rated Output Current79 A
Power Factor>0.99 (adjustable 0.8 leading … 0.8 lagging)
Total Harmonic Distortion (THDi)<3%
Max. Bypass Current87 A
Rated Input Voltage3L / N / PE, 380 / 400 V
Rated Frequency50 / 60 Hz
Max. Input Power50 kW
Rated Input Current79 A
Rated Voltage3L / N / PE, 380 / 400 V
Rated Frequency50 / 60 Hz
Rated Output Power50 kW
Max. Apparent Power / Peak75 kW / 10 s
Grid / Off-Grid Transfer Time<10 ms
Rated Voltage3L / N / PE, 380 / 400 V
Rated Frequency50 / 60 Hz
Rated Output Current79 A
Max. System / PCS Efficiency98.20%
European Efficiency97.10%
Cell TypeLFP, 3.2 V 314 Ah
Battery Configuration96S1P
Rated Battery Voltage307.2 V
Rated Energy96.6 kWh (314 Ah @ 307.2 V)
Operating Voltage Range249.6 – 350.4 V
Charge / Discharge Rate0.5 C
Protection RatingIP55
Dimensions (W × D × H)1125 × 1270 × 2080 mm (±10 mm)
Weight1200 ± 20 kg
CommunicationRS485, WiFi / BLE
Cooling MethodAir-conditioned cooling
Operating Temperature-20 to 50 °C (derating >45 °C)
Relative Humidity0 – 95% (non-condensing)
Max. Altitude<4000 m
ExpansionOff-grid: Up to 10 units. On-grid: greater capacity achievable
Grid CodesCEI 0-21 / NRS097-2-1:2017 / VDE-AR-N 4105:2018 / COC 3310-2014
All specifications are for reference only. Dimensions and weight are approximate and subject to change as product design is finalized.

Integrated All-in-One System

50 kW / 100 kWh Rated Capacity
Single Cabinet Design

UPS-Grade Power Continuity

<10ms Transfer Time
UPS Tier-3 standards

Ultra-Compact Footprint

≤2 m² Installation Area
25 kW/m² Power Density

Flexible Scalability

Up to 10 Units Parallel
500 kW / 960 kWh System

High System Efficiency

98.2% Peak Efficiency
97.1% European Efficiency

High-Safety LFP Battery

Single-String Architecture
Precision HVAC Cooling
