Model: Vault 233/261 Download Datasheet

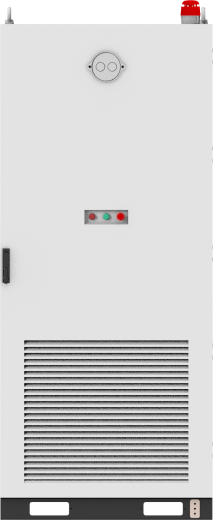

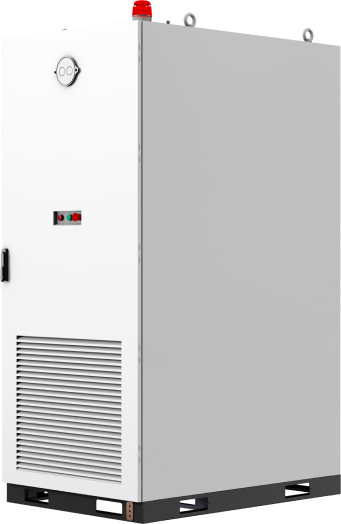

C&I Vault battery cabinet — main product view Vault 233/261 commercial and industrial energy storage cabinet
Model Vault 233 Vault 261
Parameter Vault 233 Vault 261
Depth of Discharge (DoD)98%
Operating Temperature-20 °C to 50 °C
Fire ProtectionMulti-level fire suppression at Cluster- & PACK-Level
Cooling MethodLiquid cooling
CommunicationRS485, CAN
Protection RatingIP54
Relative Humidity5% – 95%
Cabinet Dimensions (W×D×H)970 × 1400 × 2270 mm (±10 mm)
Max. Altitude≤4000 m
Weight2300 ± 20 kg2350 ± 20 kg
ExpansionOff-grid: Up to 6 units. On-grid: greater capacity achievable
Rated Power105 kW125 kW
Max. Power116 kW137 kW
Rated Grid Voltage230 / 400 V
Voltage Range-10% to +15%
Grid Frequency50 / 60 Hz
Power Factor Range-1 to +1
Grid-Connected THDi<3%
Cell Capacity280 Ah314 Ah
Rated Energy233 kWh261 kWh
Pack Configuration1P52S
Nominal System Voltage832 V
Grid CodeCEI 0-21
All specifications are for reference only. Dimensions and weight are approximate and subject to change as product design is finalized.

High-Density Energy Storage

233 / 261 kWh Per Cabinet
Compact Cabinet Footprint

Advanced Fire Safety Design

PACK- & Cluster-Level Fire Protection

Liquid Cooling System

Uniform Temperature Control
-20°C to 50°C Operation

High Performance Power

105 / 125 kW Rated Power
<3% Grid THD

Flexible Scalability

Multi-Cabinet Parallel Design
Grid & Off-Grid Support

Integrated EMS Compatibility

Built-In EMS System
RS485 / CAN Communication
