8KWH HIGH-VOLTAGE STACKABLE
16KWH LOW-VOLTAGE STACKABLE
16KWH LOW-VOLTAGE FLOOR-SANDING
Model: Nest-LV-FS-16K Download Datasheet

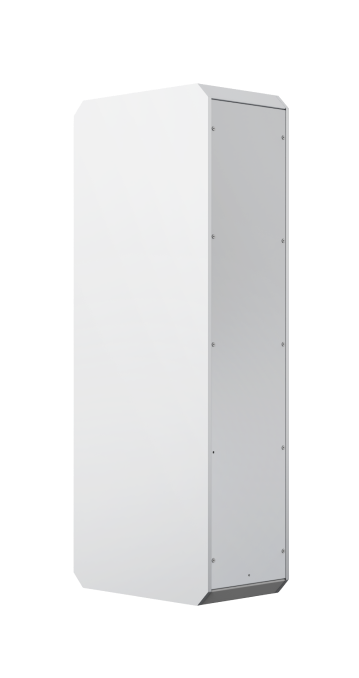

Nest-LV-FS-16K 16kWh floor-standing residential battery — gallery view Nest-LV-FS-16K low-voltage floor-standing residential ESS
Model Nest-LV-FS-16K
Battery TypeLFP
Cell Capacity314 Ah
Capacity16 kWh
Nominal Voltage51.2 V
Max. Charge Current120 A
Max. Discharge Current120 A
Peak Current205 A
CommunicationRS485 / CAN
Dimensions550 × 860 × 175mm
Weight140 kg
Operating TemperatureCharge: 0 to 55 °C Discharge: –20 to 55 °C
Storage Temperature5 to 35°C
Relative Humidity5–95%
Max. Operating Altitude< 3000 m
Cooling MethodNatural Convection
Protection RatingIP65
Installation MethodFloor-standing
Cycle Life≥6000 cycles @ 80% DOD
ExpansionFast expansion with 2 parallel units
Up to 16 units with DC combiner
All specifications are for reference only. Dimensions and weight are approximate and subject to change as product design is finalized.

High-Capacity LV ESS

16 kWh Single-Pack Capacity
314Ah LFP Cells

Compact Installation Design

16 kWh Single-Pack · Floor-Standing
Compact Footprint · IP65 Rated

High-Density LFP Battery

314Ah Large-Cell Design
6000 Cycles at 80% DOD

Retrofit-Friendly Integration

RS485 / CAN Communication
Microinverter & PV Inverter Support

High Power Capability

120A Continuous Current
205A Peak Discharge

Wide Environmental Adaptability

Natural Convection Cooling
Operating Temperature: –20°C to 55°C
