8KWH HIGH-VOLTAGE STACKABLE
16KWH LOW-VOLTAGE STACKABLE
16KWH LOW-VOLTAGE FLOOR-SANDING
Model: Nest-LV-ST-16K Download Datasheet

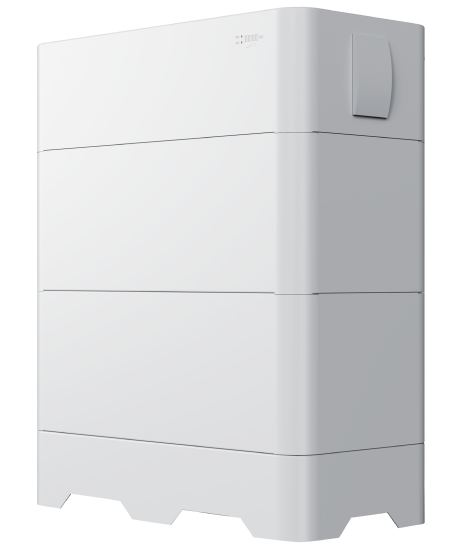

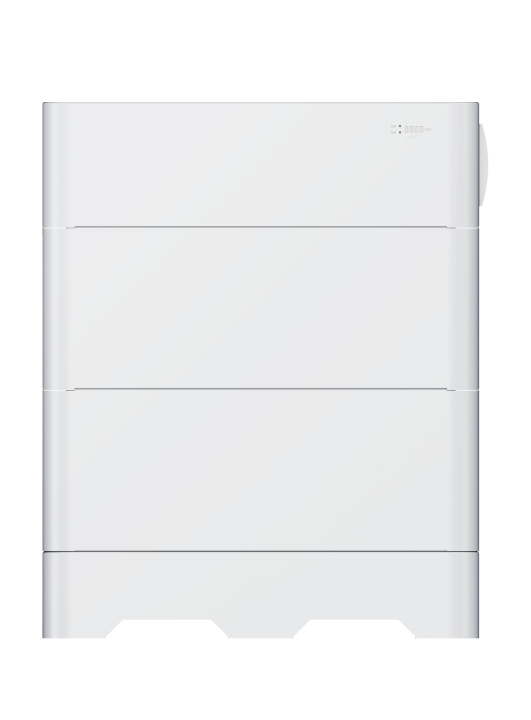

16kWh low-voltage stackable Nest residential battery 16kWh low-voltage residential ESS — alternate view
Model Nest-LV-ST-16K
Battery TypeLFP
Cell Capacity314 Ah
Capacity16 kWh
Nominal Voltage51.2 V
Max. Charge Current120 A
Max. Discharge Current120 A
Peak Current205 A
CommunicationRS485 / CAN
Dimensions700 × 350 × 260mm
Weight170 kg
Operating TemperatureCharge: 0 to 55 °C Discharge: –20 to 55 °C
Storage Temperature5 to 35°C
Relative Humidity5–95%
Max. Operating Altitude< 3000 m
Cooling MethodNatural Convection
Protection RatingIP65
Installation MethodStackable
Cycle Life≥6000 cycles @ 80% DOD
ExpansionFast expansion with 2 parallel units
Up to 16 units with DC combiner
All specifications are for reference only. Dimensions and weight are approximate and subject to change as product design is finalized.

Modular Stacked Design

Lightweight Battery Modules
Tool-Free Stacking Design

High Power Capability

120A Continuous Current
205A Peak Discharge

Scalable System Capacity

Fast Expansion with 2 Units
Up to 16 Units Total

Retrofit-Friendly Integration

RS485 / CAN Communication
Compatible with Microinverter Systems

High-Density LFP Battery

314Ah Large-Cell Design
6000 Cycles at 80% DOD

Safe & Outdoor-Ready

IP65 Protection
BMS + Breaker-Level Protection
